Heap leach areas
Geomembranes form the primary containment layer beneath heap leach areas, helping prevent process solutions from migrating into the underlying ground.
Mining engineering
Geosynthetics are used in mining projects to contain process liquids, protect liner systems, separate materials and reinforce ground across extraction, processing and waste-management areas.
Typical applications include heap leach pads, process ponds, tailings facilities, mine water containment, access roads and reinforced earth structures.
Where Geosynthetics Are Used
Mining sites use geosynthetics in containment, protection and ground-support systems according to the process, site conditions and required engineering function.
Process solution ponds
Geomembranes can line ponds used to collect, store or circulate process liquids associated with mineral recovery operations.
Tailings and water management
Geomembranes and geotextiles can be incorporated into selected tailings containment and water-management areas where a geosynthetic barrier or protection layer is specified.
Geomembrane protection
Geotextiles can be placed beneath or above geomembranes to reduce puncture risk from prepared ground, aggregate or other adjacent materials.
Mine roads and working platforms
Geotextiles and geogrids can be used beneath aggregate layers where weak ground requires separation or reinforcement for mine traffic.
Concrete process structures
HDPE anchor plates provide weldable connection points where HDPE liners meet concrete channels, pits, tanks or other process structures.
Main Engineering Functions
Mining projects can require different geosynthetic functions within containment areas, process infrastructure and site-access structures.
Containment
Geomembranes form low-permeability barriers that limit the migration of process solutions, mine water and other contained liquids.
Protection
Geotextiles provide cushioning around geomembranes where contact with soil, aggregate or construction materials could damage the liner.
Separation
Geotextiles help prevent fine subgrade soil from mixing with aggregate in roads, working platforms and other mine infrastructure.
Reinforcement
Geogrids can reinforce aggregate and soil layers where mine roads, working platforms or reinforced earth structures are built over weak or variable ground.
Filtration
Geotextiles allow water to pass while retaining soil particles at drainage and soil interfaces.
Liner connection
HDPE anchor plates provide a weldable interface between HDPE lining systems and cast-in-place concrete structures.

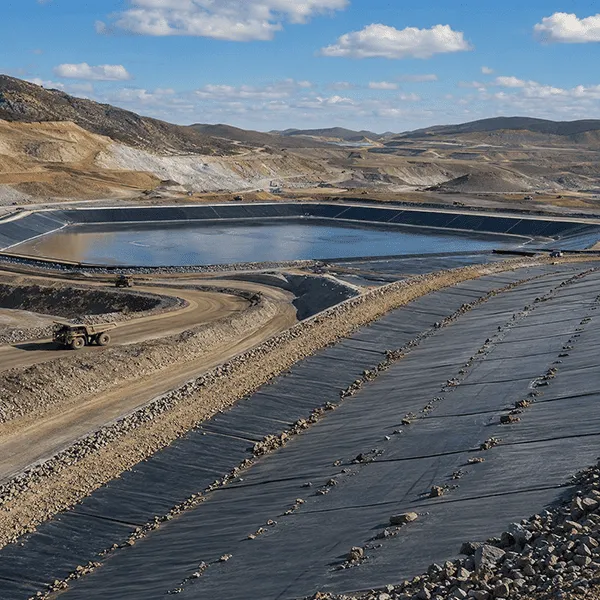

Typical Mining Engineering Applications
The geosynthetic arrangement varies according to the mining process, contained liquid, ground conditions and the function required at each part of the site.
Heap leach pads
Geomembrane liners are used beneath ore heaps to contain process solutions and direct collected liquid toward the designed recovery system.
Process and evaporation ponds
Geomembranes can line collection, process and evaporation ponds where mine water or process liquids need to be separated from the surrounding ground.
Tailings storage and water management
Geosynthetic liners and protection layers can be incorporated into selected tailings storage or associated water-management structures where required by the project design.
Mine water containment
Geomembranes can be used in ponds and basins that collect contact water, runoff or other water requiring controlled storage at the mine site.
Haul and access roads
Geotextiles and geogrids can support separation and reinforcement beneath haul roads, access roads and temporary working platforms over weak ground.
Reinforced earth structures
Geogrids can be incorporated into selected reinforced-soil slopes, embankments and retaining structures within mine infrastructure.
Recommended Products
Mining projects may use different geosynthetic materials for containment, liner protection, ground separation, reinforcement and concrete liner connections.

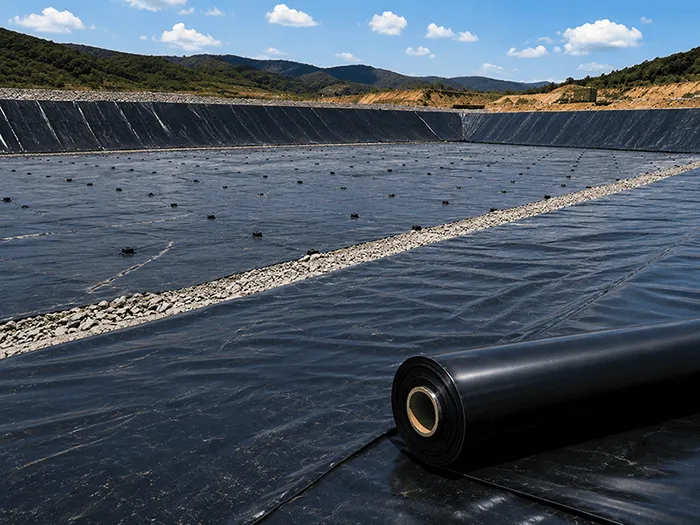

Geomembranes
Used as barrier layers in heap leach facilities, process ponds, mine-water basins and selected tailings containment systems.
Typical uses
- Heap leach pads
- Process solution ponds
- Mine water ponds
- Evaporation ponds
- Selected tailings containment
- Secondary containment

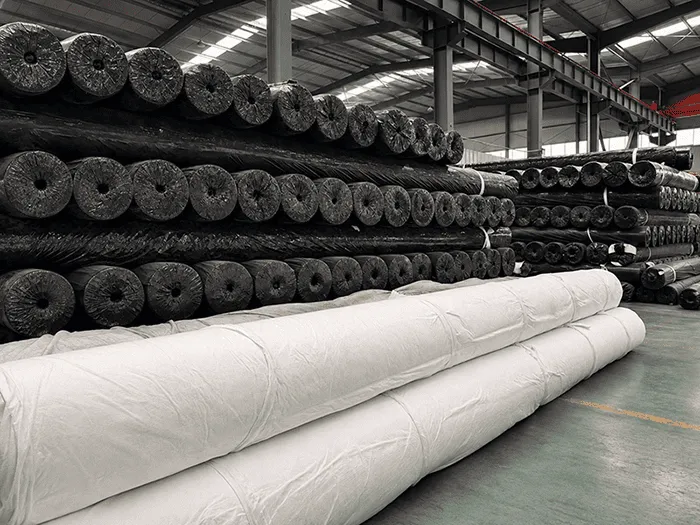

Geotextiles
Used for liner protection, separation and filtration around geomembranes, soil and aggregate layers.
Typical uses
- Geomembrane protection
- Soil separation
- Filtration layers
- Mine access roads
- Working platforms
- Selected drainage interfaces

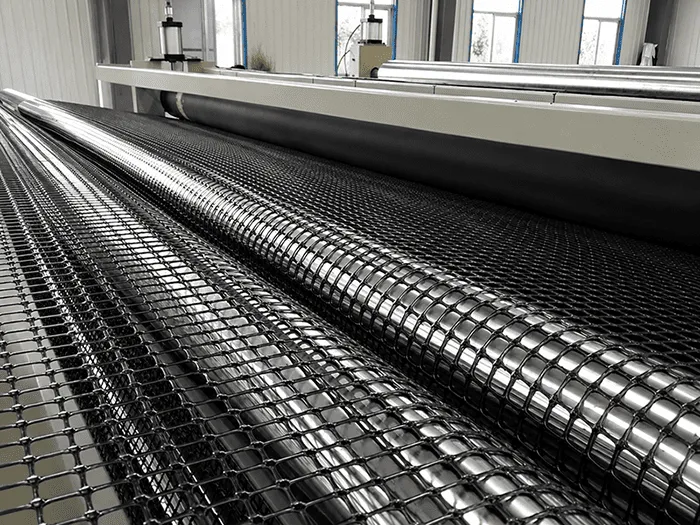

Geogrids
Used for aggregate reinforcement and soil stabilization in mine roads, working platforms and reinforced earth structures.
Typical uses
- Haul roads
- Mine access roads
- Working platforms
- Weak-ground stabilization
- Reinforced slopes
- Retaining structures
HDPE anchor plates
Used to create weldable connection points between HDPE lining systems and concrete process structures.
Typical uses
- Concrete channels
- Process pits
- Collection sumps
- Tanks
- Liner termination details
- Concrete-to-HDPE transitions
How The Products Work Together
Mining containment and infrastructure systems often use several geosynthetic materials together, with each product performing a separate barrier, protection or reinforcement function.
The final material arrangement should follow the mine design, contained liquid, ground conditions, loading requirements and applicable project specification.
Project Information Checklist
These details help us review the mining application, required materials, product specifications and order scope.
Site and operating conditions
- Mining or processing application
- Site location
- Ground condition
- Groundwater condition
- Contained liquid or material
- Operating environment
System and structure details
- Heap, pond, basin or structure type
- Required lining area
- Base and slope geometry
- Barrier layer requirements
- Protection layer requirements
- Concrete connection details
- Available drawings or cross-sections
Product requirements
- Required product type
- Geomembrane thickness
- Geotextile mass per unit area
- Geogrid strength requirement
- Roll width and length
- Requested mechanical properties
- Applicable standard or test method
Order and delivery information
- Required quantity
- Packing requirements
- Delivery country or port
- Project or mine location
- Expected delivery schedule
- Required commercial or shipment documents
Packing And Supply
Mining projects can involve large material quantities and remote delivery locations. Roll configuration, packing and shipment planning should therefore be confirmed after the product specifications, quantities and destination are established.
Roll width, roll length and unit weight depend on the selected product and specification.
Packing is confirmed according to the product type, transport method and agreed buyer requirements.
Roll labels and order identification can be prepared according to the confirmed order requirements.
Container loading should account for roll dimensions, unit weight and the combination of products supplied for the project.
Commercial and shipment documents are prepared according to the confirmed order and agreed export requirements.
Destination port, mine location, required delivery period and shipment requirements should be provided during quotation so transport planning can be discussed in advance.
Tell Us About Your Project
Send us your product specifications, quantities or project requirements, and our team will prepare a suitable material recommendation and quotation.
Request a quote
