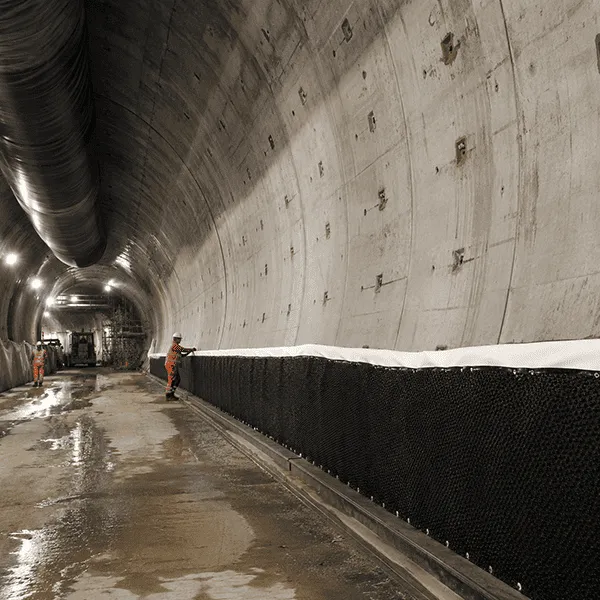

Tunnel linings and drainage
Geotextiles and drainage materials can be installed behind the permanent tunnel lining to protect waterproofing layers and direct collected groundwater toward the designed drainage system.
Tunnel & underground engineering
Geosynthetics are used in tunnels and underground structures to protect waterproofing layers, filter groundwater, provide drainage and separate materials behind or beneath concrete structures.
Typical applications include tunnel linings, cut-and-cover structures, underground walls, basements, retaining structures, drainage zones and concrete liner connections.
Where Geosynthetics Are Used
Underground structures use geosynthetics at interfaces between ground, drainage layers, waterproofing systems and concrete, with each material serving a specific protection, filtration, drainage or barrier function.
Slabs and invert structures
Drainage and separation materials can be incorporated beneath selected slabs or invert structures where groundwater or subsurface drainage needs to be managed.
Below-grade walls
Drainage materials can be installed behind basement walls, retaining walls and other below-grade structures to provide a defined drainage path.
Waterproofing membrane protection
Geotextiles can protect waterproofing membranes from irregular concrete, shotcrete, soil or aggregate surfaces during installation and construction.
Groundwater filtration
Geotextiles allow water to pass while limiting the migration of fine soil particles into drainage zones.
Concrete liner connections
HDPE anchor plates provide weldable connection points where compatible HDPE lining systems meet concrete walls, pits, channels or other structural elements.
Main Engineering Functions
Tunnel and underground projects often require several geosynthetic functions where groundwater, waterproofing layers and structural concrete meet.
Drainage
Drainage materials provide pathways for groundwater to move toward collection pipes, channels or other designed discharge points.
Protection
Geotextiles provide cushioning between irregular substrates and waterproofing layers, reducing the risk of mechanical damage during installation and concrete placement.
Filtration
Geotextiles retain soil particles while allowing groundwater to enter drainage zones.
Separation
Geotextiles help keep soil, aggregate and drainage materials separated beneath or behind underground structures.
Waterproofing barrier
Geomembranes can provide barrier layers in selected underground waterproofing systems where specified by the project design.
Liner connection
HDPE anchor plates provide a weldable interface between compatible HDPE lining systems and cast-in-place concrete structures.
Typical Tunnel & Underground Applications
The geosynthetic arrangement varies according to excavation method, groundwater conditions, structural layout and the required water-control concept.
Permanent tunnel linings
Geotextiles and drainage materials can be installed behind permanent linings to protect waterproofing layers and direct groundwater toward the designed drainage system.
Cut-and-cover structures
Geosynthetics can be incorporated around below-grade walls and roof slabs where waterproofing protection, drainage or separation is required.
Underground stations
Waterproofing, protection and drainage materials can be used around station walls and slabs according to the underground water-control design.
Basements and below-grade walls
Drainage materials and geotextiles can be used behind walls and beneath selected structural areas where groundwater needs to be collected or relieved.
Retaining and buried structures
Geotextiles and drainage materials can provide filtration, separation and drainage behind retaining walls and other buried concrete structures.
Concrete liner connections
Compatible HDPE liners and anchor plates can be used where a welded liner connection to concrete is required by the project design.
Recommended Products
Tunnel and underground projects may combine protection, filtration, drainage and waterproofing materials according to groundwater conditions and the structural design.
Geotextiles
Used for membrane protection, filtration, separation and selected drainage functions behind or beneath underground structures.
Typical uses
- Waterproofing membrane protection
- Tunnel lining protection
- Soil filtration
- Drainage filtration
- Separation layers
- Below-grade structures
HDPE drainage boards
Used in selected underground walls, retaining structures and below-grade drainage details where a formed drainage path is required.
Typical uses
- Basement wall drainage
- Retaining wall drainage
- Underground wall protection
- Below-grade structures
- Selected tunnel drainage details
Geomembranes
Used as barrier layers in selected underground waterproofing and containment applications where the specified membrane material is compatible with the project system.
Typical uses
- Selected underground waterproofing systems
- Pits and containment areas
- Below-grade barrier details
- Water-control structures
- Concrete-lined containment areas
HDPE anchor plates
Used to create weldable connection points between compatible HDPE lining systems and concrete structures.
Typical uses
- Concrete wall connections
- Pits and channels
- Liner termination details
- Underground concrete structures
- Concrete-to-HDPE transitions
How The Products Work Together
Underground water-control systems often depend on several materials working together, with separate layers handling protection, filtration, drainage and waterproofing.
The final layer arrangement should follow the groundwater conditions, structural design, waterproofing concept, substrate and applicable project specification.
Project Information Checklist
These details help us review the underground application, required materials, product specifications and order scope.
Site and groundwater conditions
- Tunnel or underground structure type
- Excavation or construction method
- Site location
- Ground condition
- Groundwater condition
- Expected water pressure or seepage condition
Structure and water-control system
- Wall, crown, invert or slab location
- Drainage and waterproofing concept
- Required drainage arrangement
- Waterproofing layer requirements
- Protection layer requirements
- Concrete connection details
- Available drawings or cross-sections
Product requirements
- Required product type
- Geotextile mass per unit area
- Drainage product dimensions
- Geomembrane material and thickness, if specified
- Roll or panel dimensions
- Requested mechanical or hydraulic properties
- Applicable standard or test method
Order and delivery information
- Required area or quantity
- Packing requirements
- Delivery country or port
- Project location
- Expected delivery schedule
- Required commercial or shipment documents
Packing And Supply
Tunnel and underground projects may require several geosynthetic materials delivered according to construction stages. Product dimensions, packing and shipment planning should be confirmed after the specifications, quantities and delivery schedule are established.
Roll or panel dimensions and unit weight depend on the selected product and specification.
Packing is confirmed according to the product type, transport method and agreed buyer requirements.
Roll labels and order identification can be prepared according to the confirmed order requirements.
Container loading should account for product dimensions, unit weight and the combination of materials supplied for the project.
Commercial and shipment documents are prepared according to the confirmed order and agreed export requirements.
Destination port, project location, required delivery period and construction schedule should be provided during quotation so shipment planning can be discussed in advance.
