Reinforced soil slopes
Geogrids can be installed in compacted fill at designed intervals to provide tensile reinforcement within steepened or reinforced soil slopes.

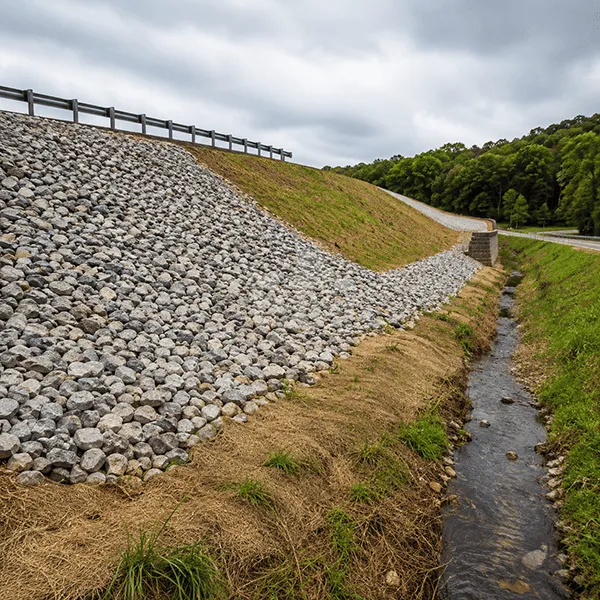

Slope protection & erosion control
Geosynthetics are used on slopes, embankments and drainage areas to reinforce soil, filter water, separate materials and support erosion-control layers beneath rock or other surface protection.
Typical applications include reinforced slopes, road and railway embankments, cut slopes, drainage channels, retaining areas and erosion protection beneath riprap.
Where Geosynthetics Are Used
Slope and erosion-control systems use different geosynthetic materials according to slope geometry, soil conditions, drainage requirements and the type of surface protection.
Embankments
Geotextiles and geogrids can be incorporated into embankment structures where separation, filtration or additional soil reinforcement is required.
Riprap protection
Geotextiles can be placed between soil and riprap to retain soil particles while allowing water to pass through the protection layer.
Channels and ditches
Geotextiles can provide filtration beneath rock or aggregate in channels and ditches where flowing water could remove fine soil.
Retaining structures
Geotextiles and drainage materials can be used behind selected retaining structures to filter soil and provide a path for collected water.
Cut slopes and exposed surfaces
Geosynthetics can support selected filtration, separation and erosion-control measures on cut slopes or other exposed soil surfaces according to the project design.
Main Engineering Functions
Slope protection systems often combine reinforcement, filtration and drainage functions rather than relying on a single material.
Reinforcement
Geogrids provide tensile reinforcement within compacted soil or aggregate where additional slope or embankment stability is required.
Filtration
Geotextiles allow water to pass while retaining soil particles beneath rock protection, drainage aggregate or other permeable layers.
Separation
Geotextiles help prevent soil from mixing with aggregate or drainage materials during construction and service.
Drainage
Drainage materials provide defined pathways for water behind retaining areas or other selected slope structures.
Erosion-control filtration
Geotextiles can form a filtration and separation layer beneath riprap or other rock protection.
Stabilization
Geotextiles and geogrids can be incorporated into selected weak-ground or embankment areas where improved construction stability is required.
Typical Slope Protection & Erosion Control Applications
The material arrangement varies according to slope angle, soil type, runoff conditions, required reinforcement and the surface protection specified by the project.
Reinforced soil slopes
Geogrids can reinforce compacted fill in steepened slopes where the project design requires additional tensile resistance within the soil mass.
Embankment slopes
Geotextiles and geogrids can be used in selected embankment slopes and foundations where reinforcement, separation or filtration is required.
Riprap protection
Geotextiles can provide a filter layer beneath riprap or rock protection, reducing the loss of underlying soil while allowing water to drain.
Drainage channels
Geotextiles can be installed beneath rock or aggregate protection where runoff needs to pass without washing fine soil from the channel bed or sides.
Retaining areas
Geogrids can reinforce selected soil structures, while geotextiles and drainage materials can provide filtration and drainage behind retaining areas.
Exposed soil surfaces
Geosynthetics can form part of selected erosion-control and filtration systems where exposed soil is vulnerable to runoff or surface erosion.
Recommended Products
Slope protection and erosion-control projects may use different geosynthetic materials for filtration, separation, soil reinforcement and drainage.
Geotextiles
Used for filtration, separation and protection beneath rock, aggregate and drainage layers.
Typical uses
- Riprap filtration
- Slope protection filters
- Drainage channels
- Roadside ditches
- Soil separation
- Retaining-area drainage
Geogrids
Used to reinforce soil and aggregate in slopes, embankments and selected retaining structures.
Typical uses
- Reinforced soil slopes
- Embankment reinforcement
- Steepened slopes
- Retaining structures
- Weak-ground stabilization
- Reinforced fill
HDPE drainage boards
Used only in selected retaining, below-grade or structural drainage details where a formed drainage path is required.
Typical uses
- Drainage behind retaining structures
- Selected slope structures
- Below-grade drainage
- Concrete wall drainage
How The Products Work Together
Slope and erosion-control systems often use reinforcement, filtration and drainage materials together, with each layer serving a different function.
The final material arrangement should follow the slope geometry, soil properties, drainage conditions, surface protection system and applicable project specification.
Project Information Checklist
These details help us review the slope application, required materials, product specifications and order scope.
Site and slope conditions
- Slope or embankment type
- Site location
- Slope height
- Slope angle or geometry
- Soil type
- Groundwater condition
- Surface runoff condition
Protection and structure details
- Reinforced or unreinforced slope
- Required erosion-protection system
- Riprap or surface protection details
- Drainage arrangement
- Retaining structure details
- Available drawings or cross-sections
Product requirements
- Required product type
- Geotextile mass per unit area
- Geogrid strength requirement
- Roll width and length
- Required filtration or drainage properties
- Requested mechanical properties
- Applicable standard or test method
Order and delivery information
- Required area or quantity
- Packing requirements
- Delivery country or port
- Project location
- Expected delivery schedule
- Required commercial or shipment documents
Packing And Supply
Slope and erosion-control projects may require several roll products delivered according to construction sequence. Product dimensions, packing and shipment planning should be confirmed after the specifications, quantities and delivery schedule are established.
Roll width, roll length and unit weight depend on the selected product and specification.
Packing is confirmed according to the product type, transport method and agreed buyer requirements.
Roll labels and order identification can be prepared according to the confirmed order requirements.
Container loading should account for roll dimensions, unit weight and the combination of materials supplied for the project.
Commercial and shipment documents are prepared according to the confirmed order and agreed export requirements.
Destination port, project location, required delivery period and construction schedule should be provided during quotation so shipment planning can be discussed in advance.
Tell Us About Your Project
Send us your product specifications, quantities or project requirements, and our team will prepare a suitable material recommendation and quotation.
