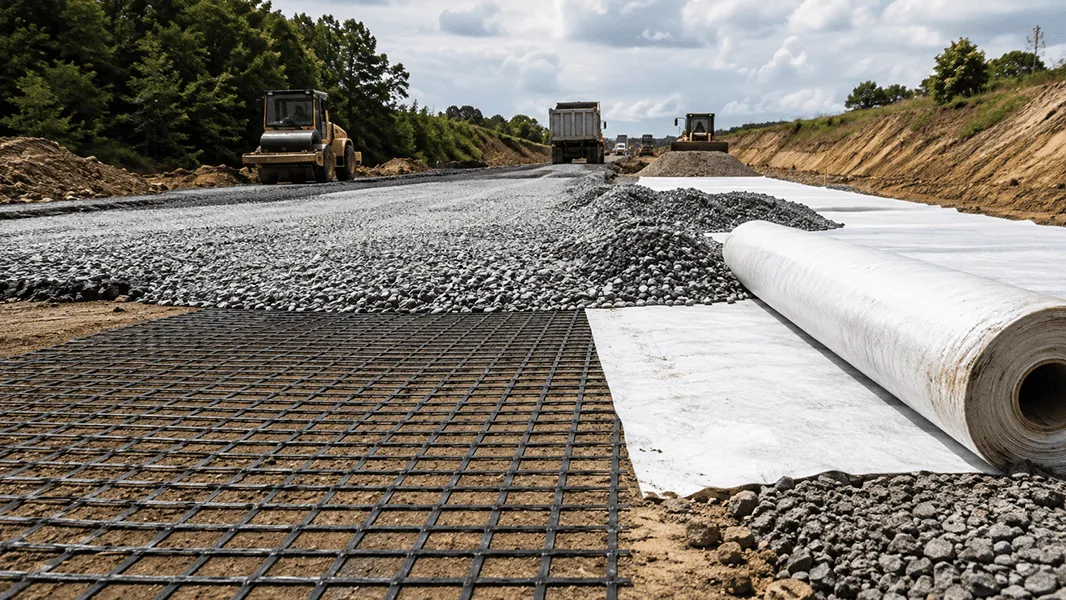

Geotextiles and geogrids are both widely used beneath roads, working platforms and aggregate layers, but they do not perform the same job.

A geotextile is primarily used to separate materials, filter soil and, depending on the product, provide selected drainage or protection functions.

A geogrid is an open-grid reinforcement material designed to interact mechanically with aggregate or soil.

For road construction, the key distinction is therefore straightforward:

Geotextile helps keep the pavement layers functioning as separate materials. Geogrid helps reinforce the aggregate or soil structure.

In difficult ground conditions, a project may require one material, the other, or both.

Choosing between them should start with the failure mechanism the design is trying to control—not with product price, roll weight or what was used on another project.

Geotextile vs geogrid at a glance

Item	Geotextile	Geogrid
Structure	Continuous permeable textile	Open grid with apertures
Main road function	Separation and filtration	Reinforcement
Interaction with soil	Retains fines while allowing water movement	Interlocks with aggregate or reinforces soil
Common location	Between subgrade and aggregate	Within or beneath aggregate or reinforced fill
Useful over soft subgrade	Yes, particularly where separation and filtration are required	Yes, particularly where aggregate reinforcement is required
Can one replace the other?	Not generally	Not generally

FHWA guidance makes essentially the same distinction: geotextiles perform particularly well as separators and filters, while geogrids are more directly suited to reinforcement.

What does a geotextile do beneath a road?

One of the most important functions of a geotextile beneath aggregate is separation.

A road or temporary working platform often consists of granular material placed over a finer subgrade. If the subgrade is wet or weak, construction traffic can force the coarse aggregate downward while fine soil migrates upward into the aggregate layer.

Over time, the boundary between the two materials becomes less distinct.

That matters because contaminated aggregate no longer performs like clean aggregate.

FHWA pavement guidance notes that when fines migrate into the base course, the contaminated portion can lose stiffness and begin behaving more like the underlying subgrade.

A geotextile placed at the interface helps maintain separation.

Typical applications include:

• road subgrades
• access roads
• temporary construction roads
• working platforms
• aggregate yards
• selected railway and embankment applications

Separation is not the same as reinforcement

This is one of the most common sources of confusion.

A geotextile may contribute frictional resistance within a system, and some products can contribute to stabilization under certain conditions. But when comparing the two product categories, the primary distinction remains:

Geotextile → separation and filtration

Geogrid → reinforcement

This difference becomes particularly important when the subgrade contains fine soil.

A geogrid has relatively large openings because those apertures are necessary for interaction with aggregate. Those same openings mean it does not perform the same fine-particle filtration function as a suitably selected geotextile.

FHWA specifically notes that geogrids can prevent aggregate from penetrating into the subgrade, but they do not by themselves prevent fine subgrade material from pumping upward into the base.

What does a geogrid do beneath a road?

A geogrid is designed with an open network of tensile elements.

When aggregate is placed and compacted over the grid, particles can engage with its apertures. This interaction helps restrain lateral movement of the aggregate and contributes to the mechanical behavior of the granular layer.

FHWA defines geogrids as products used primarily for reinforcement of base and subbase layers and for stabilization of soft subgrades.

Typical applications include:

• road-base reinforcement
• haul roads
• temporary access roads
• working platforms
• weak-ground construction
• reinforced embankments
• reinforced soil structures

Why aggregate confinement matters

Under wheel loading, aggregate tends to move laterally.

If the underlying ground is weak, this movement can contribute to rutting and deformation.

A suitably selected geogrid can interact with the aggregate and provide lateral restraint.

FHWA describes this mechanism as part of geosynthetic stabilization, where tensile resistance to aggregate movement can improve system behavior and help distribute loads through the granular layer.

This does not mean that simply adding any geogrid will automatically improve every pavement.

The result depends on factors including:

• subgrade strength
• aggregate type
• aggregate thickness
• geogrid properties
• loading
• drainage
• construction quality

Which is better on soft subgrade?

There is no universal answer because “soft subgrade” can involve several separate problems.

Problem 1: aggregate is mixing with fine soil

The primary need is separation.

A geotextile is often the more relevant product.

Problem 2: the aggregate layer needs mechanical reinforcement

The primary need is reinforcement.

A geogrid may be appropriate.

Problem 3: both are happening

Then the correct solution may be geotextile + geogrid.

This is especially relevant when a wet, fine-grained subgrade requires both:

• separation / filtration
• reinforcement of the overlying aggregate

FHWA notes that where geogrid reinforcement is used over wet fine-grained subgrade, a separation geotextile may also need to be considered.

When should geotextile and geogrid be used together?

A combined system can be appropriate when each material addresses a different function.

A typical conceptual arrangement may be:

Subgrade → geotextile → geogrid → aggregate

or another arrangement defined by the project design.

The geotextile controls migration of fines and maintains separation.

The geogrid interacts with the aggregate to provide reinforcement.

The aggregate then forms the working or structural granular layer.

The important point is that the two materials are not duplicates.

They solve different problems.

Example: temporary construction road over wet soil

Consider a construction access road over a wet, fine-grained subgrade.

Heavy trucks need to begin using the route before the permanent works are complete.

The site may face two simultaneous risks:

1. aggregate being pushed into the weak subgrade;
2. fine soil pumping upward into the aggregate.

A geogrid alone may improve aggregate restraint, but it does not automatically solve the filtration problem.

A geotextile separator can help maintain the material interface.

Depending on the design, the combination can therefore provide a more complete solution than either product considered in isolation.

FHWA stabilization guidance specifically discusses geosynthetics in soft, wet subgrades where conventional construction can otherwise lead to substantial rutting.

Example: competent subgrade with good drainage

The answer may be different when the subgrade is already strong.

If the soil is competent and there is little risk of contamination between layers, a geotextile may not provide the same benefit as it would on wet, fine-grained ground.

Likewise, geogrid reinforcement should not be assumed necessary on every competent subgrade.

FHWA cautions that geosynthetic stabilization is most relevant under particular weak-ground conditions and that application to better subgrades should be evaluated based on the required function.

This is why “we always use geogrid under roads” is not a useful design rule.

Neither is “every road needs geotextile.”

Geotextile vs geogrid for common applications

Road subgrade separation

Geotextile: usually the more directly relevant material
Geogrid: may be added when reinforcement is also required

The purpose of the geotextile is to prevent unacceptable mixing between subgrade and aggregate.

Base reinforcement

Geogrid: generally the more directly relevant material
Geotextile: may still be needed for separation or filtration

If the design objective is to reinforce a granular base layer, geogrid becomes the primary product under consideration.

Working platforms

Geotextile: separation
Geogrid: reinforcement

Weak construction ground is a common situation where both functions may be required.

Haul and mine roads

Geogrids can reinforce aggregate layers subjected to heavy site traffic, while geotextiles may be used where fine subgrade needs separation from the aggregate.

Railway formations

Geotextiles can perform separation and filtration functions, while geogrids may be incorporated where reinforcement of ballast, sub-ballast or earth structures is required by the project design.

The exact arrangement should follow the railway specification rather than be copied directly from a road pavement section.

What about drainage?

Water is critical to both products.

A geotextile used over wet, fine-grained soil may need to allow water movement while retaining soil particles.

If the material prevents adequate dissipation of water or becomes unsuitable for the soil gradation, pore pressure and pumping can become a concern.

FHWA guidance notes that stabilization geotextiles must perform both separation and filtration functions where drainage of the subgrade is necessary.

A geogrid does not provide equivalent filtration.

Its openings are there primarily to permit mechanical interaction with fill or aggregate.

How to choose between geotextile and geogrid

Start with the problem, not the product.

1. Check the subgrade

Useful information includes:

• soil type
• fines content
• moisture condition
• CBR or other strength information
• pumping or rutting risk
• groundwater and drainage condition

If the subgrade is soft, wet and fine-grained, separation may be just as important as reinforcement.

2. Define the required function

Ask whether the project primarily needs:

• separation
• filtration
• reinforcement
• stabilization
• or a combination

Do not use “stabilization” as a vague umbrella term without identifying which mechanism is required.

3. Review the aggregate

Aggregate gradation, particle size and layer thickness influence how it interacts with a geosynthetic.

This is especially important for geogrid because reinforcement depends on the interaction between the grid and surrounding fill.

4. Consider construction traffic

Temporary roads and working platforms can experience very severe loading before the final structure exists.

The material therefore has to be assessed against construction conditions, not only long-term service conditions.

5. Follow the project specification

Do not select a geotextile solely by GSM.

Do not select a geogrid solely by nominal tensile strength.

The required properties depend on the design function and test method specified for the project.

Common mistakes when selecting road geosynthetics

Using geogrid as a substitute for filtration

Geogrid reinforcement does not automatically stop fine soil from migrating into aggregate.

Where filtration and separation are required, the system needs to address those functions separately.

Assuming heavier geotextile is always better

A higher mass per unit area does not automatically mean a better filter or separator.

Relevant hydraulic and mechanical properties must match the soil and installation conditions.

Comparing geogrids only by tensile strength

Nominal tensile strength alone does not describe every aspect of aggregate interaction or product suitability.

The project specification should define the relevant performance criteria.

Ignoring the first aggregate lift

Installation matters.

FHWA construction specifications require care when placing aggregate over geotextiles so that construction equipment does not directly damage the fabric and the initial cover is placed correctly.

Selecting a product without understanding the failure mechanism

If the problem is fines migration, reinforcement alone may not solve it.

If the problem is inadequate aggregate restraint, separation alone may not solve it.

Correct product selection depends on identifying the actual engineering requirement.

Geotextile, geogrid or both?

A practical starting point is:

Choose geotextile when the main requirement is:

• separation
• filtration
• preventing fine soil from contaminating aggregate
• maintaining distinct material layers

Choose geogrid when the main requirement is:

• aggregate reinforcement
• lateral restraint
• reinforced fill
• stabilization where reinforcement is required

Consider both when the project requires:

• separation of wet or fine subgrade from aggregate
• and reinforcement of the aggregate layer

The final arrangement should follow the project design, subgrade conditions, aggregate properties, traffic loading and applicable specification.

For quotations or preliminary product review, provide the supplier with the road section, subgrade condition, required function, material specification, quantity and delivery destination.

That information is much more useful than simply requesting “geotextile for road” or “geogrid for soft soil.”
