High tensile strength
Available grades from 15 to 50 kN/m support reinforcement requirements for a range of transportation and civil-engineering applications.

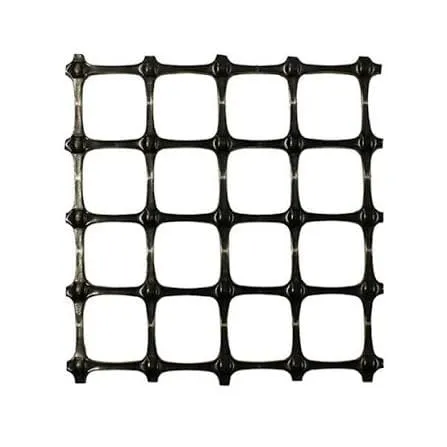

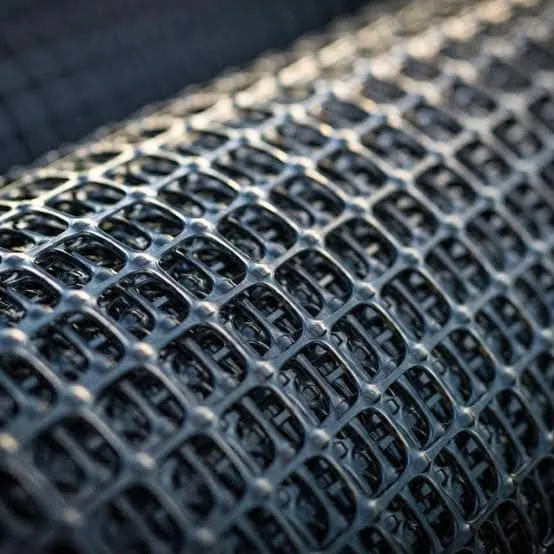

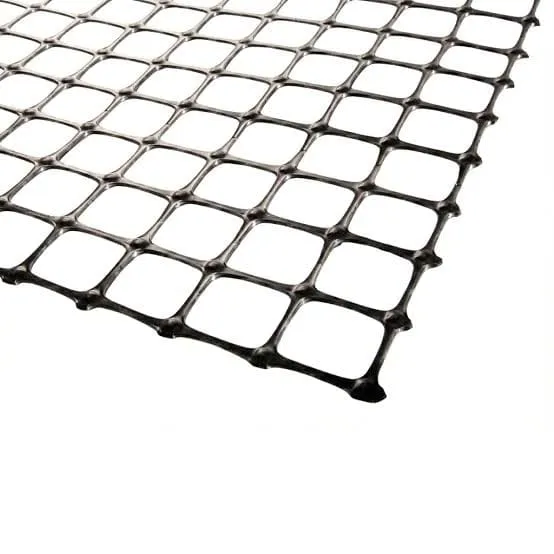

Biaxially Stretched Plastic Geogrids
Polypropylene biaxial geogrids for subgrade reinforcement, pavement reinforcement and slope-stabilization applications.
Biaxially stretched plastic geogrids provide balanced tensile performance and are used in transportation infrastructure, bearing-ground reinforcement and slope-protection systems.
Product Overview
0104
Biaxially stretched plastic geogrids are polypropylene reinforcement geosynthetics designed for subgrade improvement, pavement reinforcement and load-distribution applications. Their tensile performance is defined across multiple grades and they are supplied for a range of transportation and civil-engineering uses.
Typical uses include reinforcement of highways, railways and airports, as well as bearing-ground reinforcement for large parking areas and wharf freight yards. They can also be used for secondary reinforcement of slopes after uniaxial geogrid reinforcement, slope strengthening, erosion-control works, culvert reinforcement, slope protection along railways and highways, and reinforcement in mining and tunnel projects.
Product facts
- Material
- PP (polypropylene)
- Structure
- Biaxially stretched plastic geogrid
- Available tensile grades
- 15–50 kN/m
- Width
- 1–6 m
- Primary functions
- Subgrade reinforcement, pavement reinforcement and slope strengthening
- Typical applications
- Highways, railways, airports, parking areas, wharf yards, slopes, culverts, mines and tunnels
Key Features
Balanced biaxial performance
The product is designed for tensile performance in both principal directions for subgrade and pavement reinforcement applications.
Controlled elongation
The supplied technical data defines longitudinal and transverse yield-elongation requirements for the available product grades.
Convenient installation
The product data highlights convenient and efficient construction for reinforcement works.
Broad engineering use
Suitable for highways, railways, airports, parking areas, wharf yards, slopes, culverts, mines and tunnel-related reinforcement projects.
Technical Specifications
Technical specification
Manufacturer product specification
Technical data source
Customer-provided Biaxially Stretched Plastic Geogrids performance parameters.
| Property | TDGD 15-15 | TDGD 20-20 | TDGD 25-25 | TDGD 30-30 | TDGD 35-35 | TDGD 40-40 | TDGD 45-45 | TDGD 50-50 |
|---|---|---|---|---|---|---|---|---|
| Longitudinal and transverse tensile yield stress — kN/m | ≥ 15 | ≥ 20 | ≥ 25 | ≥ 30 | ≥ 35 | ≥ 40 | ≥ 45 | ≥ 50 |
| Longitudinal yield elongation — % | ≤ 15 | ≤ 15 | ≤ 15 | ≤ 15 | ≤ 15 | ≤ 15 | ≤ 15 | ≤ 15 |
| Transverse yield elongation — % | ≤ 13 | ≤ 13 | ≤ 13 | ≤ 13 | ≤ 13 | ≤ 13 | ≤ 13 | ≤ 13 |
| Tensile force at 2% elongation — kN/m | ≥ 5 | ≥ 7 | ≥ 9 | ≥ 10.5 | ≥ 12 | ≥ 14 | ≥ 16 | ≥ 17.5 |
| Tensile force at 5% elongation — kN/m | ≥ 7 | ≥ 14 | ≥ 17 | ≥ 21 | ≥ 24 | ≥ 28 | ≥ 32 | ≥ 35 |
| Width — m | 1–6 | 1–6 | 1–6 | 1–6 | 1–6 | 1–6 | 1–6 | 1–6 |
Technical Notes
- The supplied customer data identifies this product as a polypropylene biaxially stretched plastic geogrid for reinforcement applications.
- The available grades are listed as TDGD 15-15 through TDGD 50-50, with tensile-yield-stress values corresponding to the grade designation.
- Project-specific product selection should be confirmed according to the required tensile grade, elongation requirements and project design conditions.
