High tensile strength
Available strength grades from 25 to 120 kN/m provide tensile reinforcement for pavement and infrastructure applications.

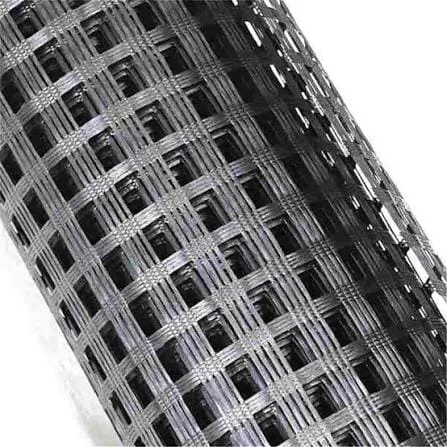

Fiberglass Geogrid
High-strength, low-elongation geogrid for pavement reinforcement and crack-control applications.
Fiberglass geogrid is designed for reinforcement of asphalt and pavement structures, including rehabilitation works, road and bridge surfaces, airport pavements and other applications requiring tensile reinforcement.
Product Overview
0104
Fiberglass geogrid is a grid-structured geosynthetic designed to provide tensile reinforcement with low elongation. It is primarily used in pavement and infrastructure applications where reinforcement is required to help distribute tensile stresses and control crack propagation.

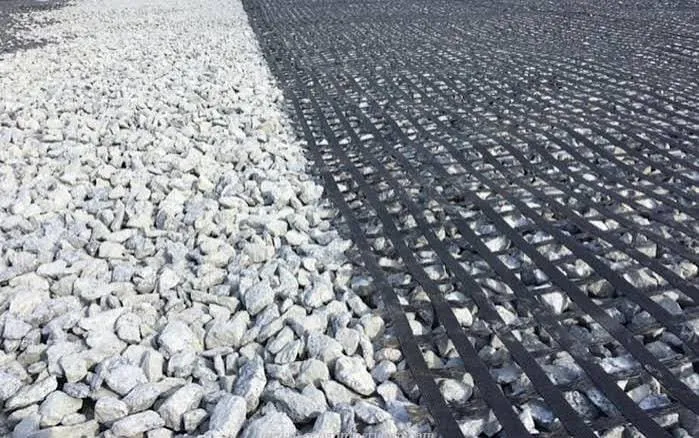

Typical applications include rehabilitation of existing concrete and asphalt pavements, airport pavement maintenance, road and bridge pavement reinforcement, embankments, riverbanks and slope-protection works. It can also be incorporated into pavement systems where reinforcement is required to help limit reflection cracking.
Product facts
- Material
- Fiberglass
- Structure
- Open-grid reinforcement
- Available strength grades
- 25–120 kN/m
- Elongation at break
- ≤ 4%
- Available grid sizes
- 12.7 × 12.7 mm
25.4 × 25.4 mm
40 × 40 mm - Width
- 1–6 m
- Available types
- Standard / Self-adhesive
- Primary functions
- Pavement reinforcement and crack control
Key Features
Low elongation
The technical specification limits elongation at break to 4% or less in both longitudinal and transverse directions.

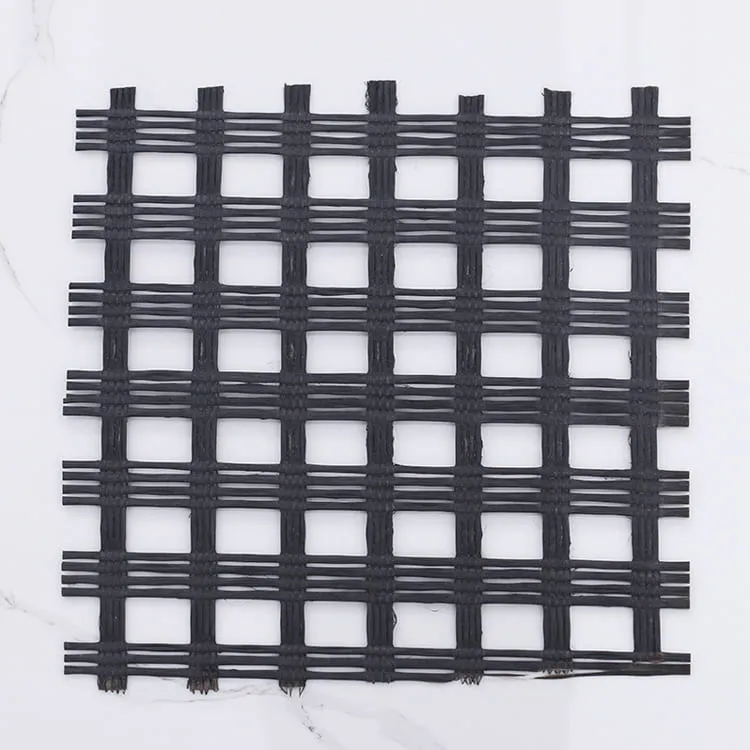

Open-grid structure
The grid structure allows integration within pavement layers while providing tensile reinforcement across the treated area.
Pavement reinforcement
Designed for use in rehabilitation and reinforcement of asphalt and concrete pavement systems.
Standard and self-adhesive types
Available in standard and self-adhesive configurations for different installation requirements.
Technical Specifications
Technical specification
Manufacturer product specification
Technical data source
Customer-provided Fiberglass Geogrid product specifications and performance parameters table.
| Model | Longitudinal breaking strength — kN/m | Transverse breaking strength — kN/m | Elongation at break — % |
|---|---|---|---|
| EGA 25-25 | ≥ 25 | ≥ 25 | ≤ 4 |
| EGA 30-30 | ≥ 30 | ≥ 30 | ≤ 4 |
| EGA 40-40 | ≥ 40 | ≥ 40 | ≤ 4 |
| EGA 50-50 | ≥ 50 | ≥ 50 | ≤ 4 |
| EGA 80-80 | ≥ 80 | ≥ 80 | ≤ 4 |
| EGA 100-100 | ≥ 100 | ≥ 100 | ≤ 4 |
| EGA 120-120 | ≥ 120 | ≥ 120 | ≤ 4 |
| Model | Longitudinal breaking strength — kN/m | Transverse breaking strength — kN/m | Elongation at break — % |
|---|---|---|---|
| EGA 30-30 Self-Adhesive | ≥ 30 | ≥ 30 | ≤ 4 |
| EGA 40-40 Self-Adhesive | ≥ 40 | ≥ 40 | ≤ 4 |
| EGA 50-50 Self-Adhesive | ≥ 50 | ≥ 50 | ≤ 4 |
| EGA 80-80 Self-Adhesive | ≥ 80 | ≥ 80 | ≤ 4 |
| EGA 100-100 Self-Adhesive | ≥ 100 | ≥ 100 | ≤ 4 |
| EGA 120-120 Self-Adhesive | ≥ 120 | ≥ 120 | ≤ 4 |
| Property | Specification |
|---|---|
| Available grid sizes | 12.7 × 12.7 mm 25.4 × 25.4 mm 40 × 40 mm |
| Width | 1–6 m |
| Elongation at break — longitudinal | ≤ 4% |
| Elongation at break — transverse | ≤ 4% |
Discuss your product requirements
Send us your application, required specification, quantity and delivery destination for product review and quotation.
Useful information to provide
- Application
- Required tensile strength
- Required grid size
- Standard or self-adhesive type
- Required width
- Quantity
- Project location
- Delivery destination
- Project specification
