High tensile strength
Uniaxial grades are available up to 150 kN/m, while biaxial grades are available up to 120 kN/m.

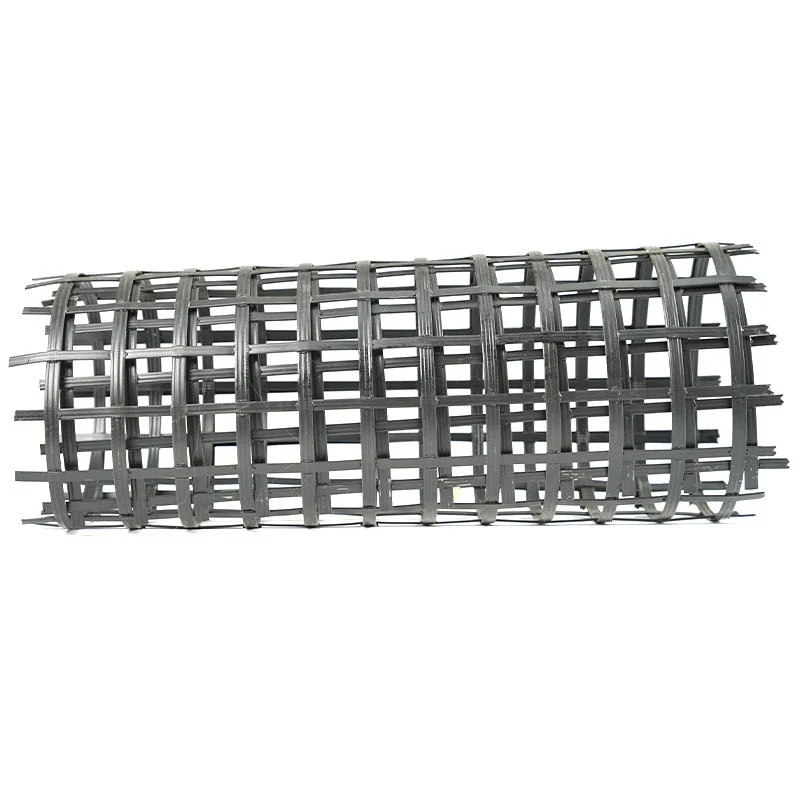

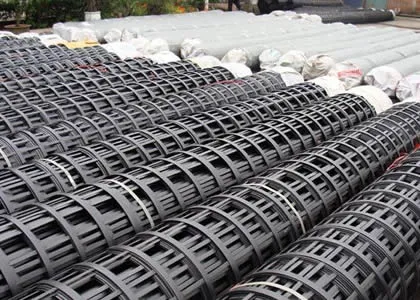

Steel-Plastic Composite Geogrid
High-strength steel-plastic composite geogrid for soft-ground improvement, embankment reinforcement and other civil-engineering applications.
Available in uniaxial and biaxial configurations, steel-plastic composite geogrid provides high tensile strength with low elongation for reinforcement of soil structures and transportation infrastructure.
Product Overview
0104
Steel-plastic composite geogrid is a reinforcement geosynthetic designed to provide high tensile strength with limited deformation. The product is available in uniaxial and biaxial configurations to meet different soil-reinforcement requirements.
Typical applications include soft-ground reinforcement for highways and railways, as well as abutments, approaches, wharves, revetments, dams and slag-yard foundations. It can also be used for secondary reinforcement of reinforced slopes and other projects requiring additional tensile reinforcement.
Product facts
- Product type
- Steel-plastic composite geogrid
- Available configurations
- Uniaxial / Biaxial
- Uniaxial tensile grades
- 30–150 kN/m
- Biaxial tensile grades
- 30–120 kN/m
- Ultimate elongation
- ≤ 3%
- Primary functions
- Soft-ground reinforcement, embankment reinforcement and slope reinforcement
- Typical applications
- Highways, railways, abutments, approaches, wharves, revetments, dams and slag-yard foundations
Key Features
Low elongation
The technical specification limits ultimate elongation to 3% or less for both uniaxial and biaxial product configurations.
Low-strain performance
Tensile resistance at 1% elongation is specified for each available product grade.

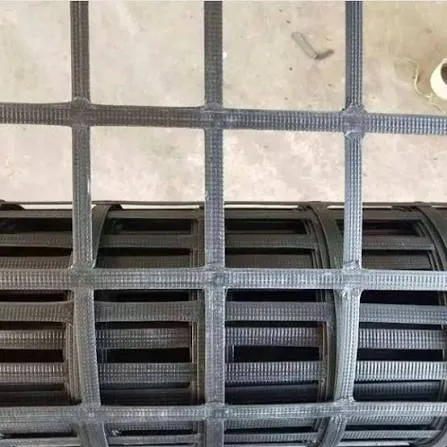

Uniaxial and biaxial options
Available in longitudinal and biaxial reinforcement configurations for different project requirements.
Ground reinforcement
Designed for soft-ground, embankment, slope and transportation-infrastructure reinforcement applications.
Technical Specifications
Technical specification
Manufacturer product specification
Technical data source
Customer-provided Steel-Plastic Composite Geogrid product specifications and performance parameters.
| Property | GSZ30 | GSZ50 | GSZ80 | GSZ100 | GSZ120 | GSZ150 |
|---|---|---|---|---|---|---|
| Longitudinal ultimate tensile strength — kN/m | ≥ 30 | ≥ 50 | ≥ 80 | ≥ 100 | ≥ 120 | ≥ 150 |
| Longitudinal ultimate elongation — % | ≤ 3 | ≤ 3 | ≤ 3 | ≤ 3 | ≤ 3 | ≤ 3 |
| Tensile resistance at 1% elongation — kN/m | ≥ 23 | ≥ 38 | ≥ 63 | ≥ 81 | ≥ 98 | ≥ 125 |
| Property | GSZ30-30 | GSZ50-50 | GSZ60-60 | GSZ80-80 | GSZ100-100 | GSZ120-120 |
|---|---|---|---|---|---|---|
| Biaxial ultimate tensile strength — kN/m | ≥ 30 | ≥ 50 | ≥ 60 | ≥ 80 | ≥ 100 | ≥ 120 |
| Biaxial ultimate elongation — % | ≤ 3 | ≤ 3 | ≤ 3 | ≤ 3 | ≤ 3 | ≤ 3 |
| Tensile resistance at 1% elongation — kN/m | ≥ 23 | ≥ 36 | ≥ 48 | ≥ 63 | ≥ 81 | ≥ 98 |
Technical Notes
- The product is available in separate uniaxial and biaxial reinforcement configurations with different strength grades.
- Ultimate tensile strength and tensile resistance at 1% elongation are minimum requirements for the corresponding product grade.
- Ultimate elongation is limited to 3% or less for both specification groups.
- Project-specific selection should be confirmed according to the required reinforcement direction, tensile grade and design conditions.
