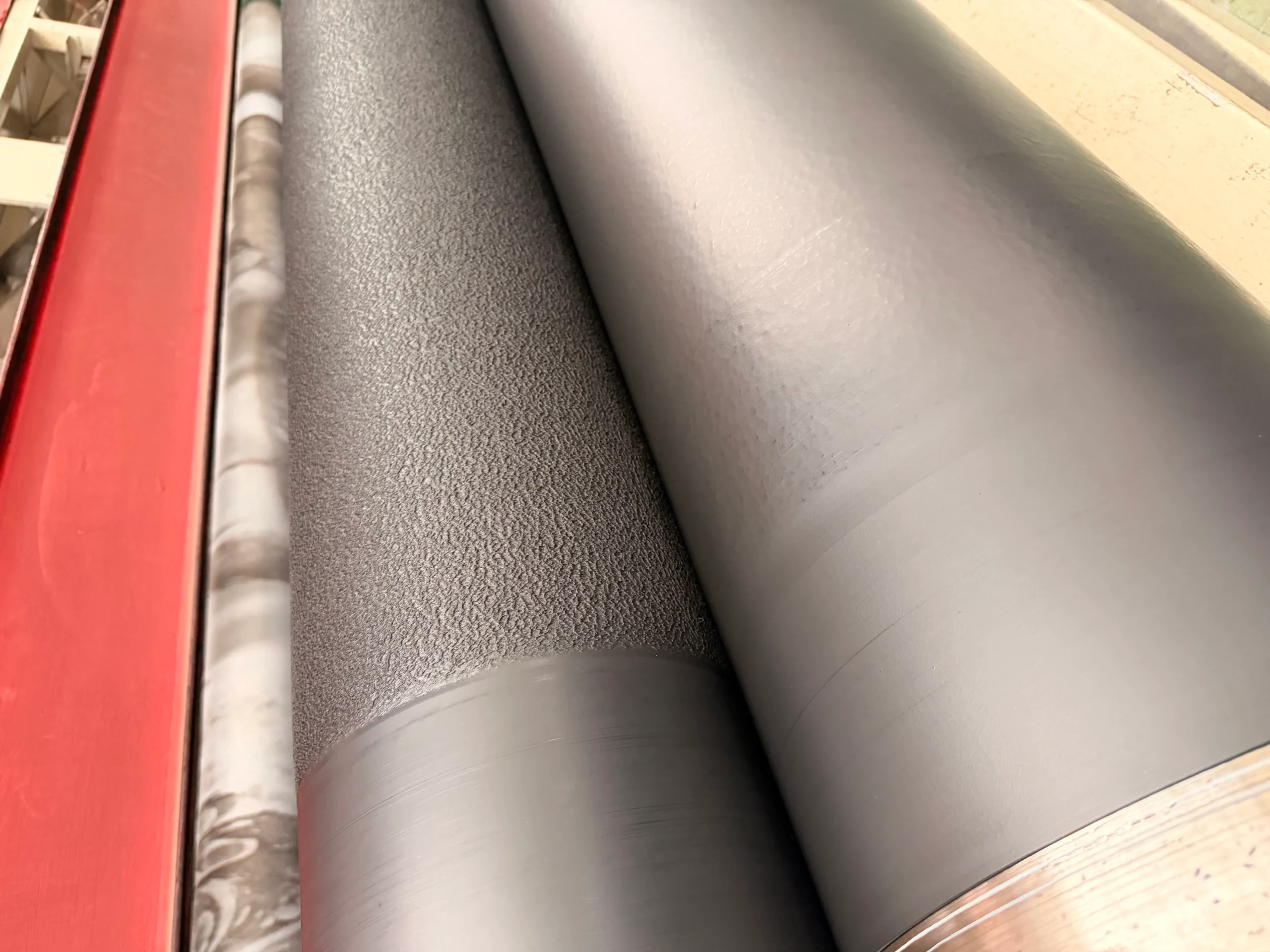

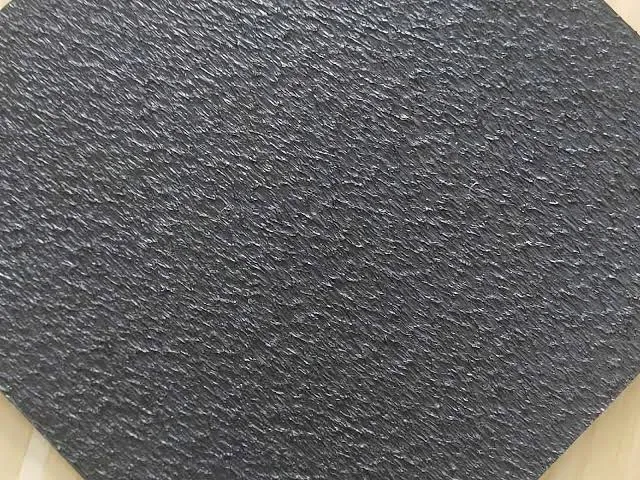

Textured surface
The textured surface provides increased interface friction for containment systems where resistance to sliding is an important design consideration.

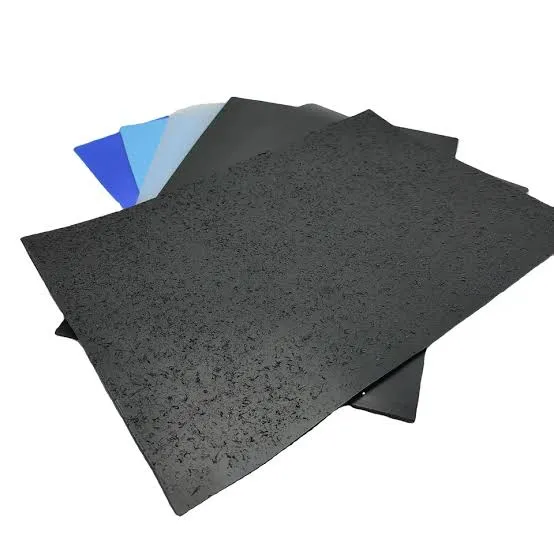

HDPE Textured Geomembrane (GH-2T1 / GH-2T2)
Textured high-density polyethylene geomembrane for containment systems requiring increased interface friction.
GH-2T1 and GH-2T2 are textured HDPE geomembranes designed for landfill, mining and environmental containment applications where both seepage control and increased surface friction are required.
Product Overview
0104
GH-2T1 and GH-2T2 are textured high-density polyethylene geomembranes used in containment and seepage-control systems where increased surface friction is required. The textured surface provides a higher-friction interface for applications where resistance to sliding is an important design consideration.
Typical uses include municipal environmental projects, landfill caps and liners, mining heap leach pads, wastewater treatment lagoons, secondary containment, solid-waste landfills and hazardous-waste landfills.
Product facts
- Material
- HDPE
- Surface
- Textured
- Product types
- GH-2T1 / GH-2T2
- Thickness range
- 0.75–3.0 mm
- Asperity height
- ≥ 0.25 mm
- Typical applications
- Landfills, mining heap leach pads, wastewater treatment lagoons and secondary containment
- Applicable standards
- GB/T 17643-2011; CJ/T 234-2006
Key Features
Seepage control
Designed as a geomembrane barrier for landfill, wastewater, mining and other environmental containment applications.
Tensile performance
Specified tensile yield and breaking strength requirements are defined across the available thickness range.
Tear and puncture resistance
Thickness-dependent tear and puncture resistance requirements are specified for the material.
Stress crack resistance
The technical specification includes a minimum stress crack resistance requirement of 300 hours.
Material stability
The specification includes requirements for carbon black content, oxidative induction time, oven aging and UV resistance.
Technical Specifications
Product standards
GB/T 17643-2011
CJ/T 234-2006
CJ/T 234-2006
Technical data reference
GH-2T1 / GH-2T2 Technical Specification
Textured High Density Polyethylene (HDPE) Geomembrane
| Property | 0.75 mm | 1.00 mm | 1.25 mm | 1.50 mm | 2.00 mm | 2.50 mm | 3.00 mm |
|---|---|---|---|---|---|---|---|
| Density — g/cm³ | ≥ 0.940 | ≥ 0.940 | ≥ 0.940 | ≥ 0.940 | ≥ 0.940 | ≥ 0.940 | ≥ 0.940 |
| Asperity height — mm | ≥ 0.25 | ≥ 0.25 | ≥ 0.25 | ≥ 0.25 | ≥ 0.25 | ≥ 0.25 | ≥ 0.25 |
| Tensile yield strength, MD/CD — N/mm | ≥ 11 | ≥ 15 | ≥ 18 | ≥ 22 | ≥ 29 | ≥ 37 | ≥ 44 |
| Tensile breaking strength, MD/CD — N/mm | ≥ 8 | ≥ 10 | ≥ 13 | ≥ 16 | ≥ 21 | ≥ 26 | ≥ 32 |
| Yield elongation, MD/CD — % | ≥ 12 | ≥ 12 | ≥ 12 | ≥ 12 | ≥ 12 | ≥ 12 | ≥ 12 |
| Elongation at break, MD/CD — % | ≥ 100 | ≥ 100 | ≥ 100 | ≥ 100 | ≥ 100 | ≥ 100 | ≥ 100 |
| Property | 0.75 mm | 1.00 mm | 1.25 mm | 1.50 mm | 2.00 mm | 2.50 mm | 3.00 mm |
|---|---|---|---|---|---|---|---|
| Right-angle tearing load, MD/CD — N | ≥ 93 | ≥ 125 | ≥ 160 | ≥ 190 | ≥ 250 | ≥ 315 | ≥ 375 |
| Puncture resistance — N | ≥ 200 | ≥ 270 | ≥ 335 | ≥ 400 | ≥ 535 | ≥ 670 | ≥ 800 |
| Property | 0.75 mm | 1.00 mm | 1.25 mm | 1.50 mm | 2.00 mm | 2.50 mm | 3.00 mm |
|---|---|---|---|---|---|---|---|
| Tensile-load stress cracking — Notched constant-load tensile method | ≥ 300 h | ||||||
| Carbon black content | 2.0–3.0% | ||||||
| Carbon black dispersion | Among 10 test results, no more than one result may be Level 3. Level 4 and Level 5 are not allowed. | ||||||
| Option A — Standard OIT | ≥ 100 min | ||||||
| OR | |||||||
| Option B — High Pressure OIT | ≥ 400 min | ||||||
| Property | 0.75 mm | 1.00 mm | 1.25 mm | 1.50 mm | 2.00 mm | 2.50 mm | 3.00 mm |
|---|---|---|---|---|---|---|---|
| Oven aging at 85°C — OIT retention after 90 days | ≥ 55% | ||||||
| UV resistance — OIT retention after 1600 hours | ≥ 50% | ||||||
Technical Notes
- Asperity height requirements are subject to the sampling and acceptance provisions specified for GH-2T1 / GH-2T2.
- Thickness specifications and deviations not listed in the table are determined according to the interpolation provisions of the applicable specification.
