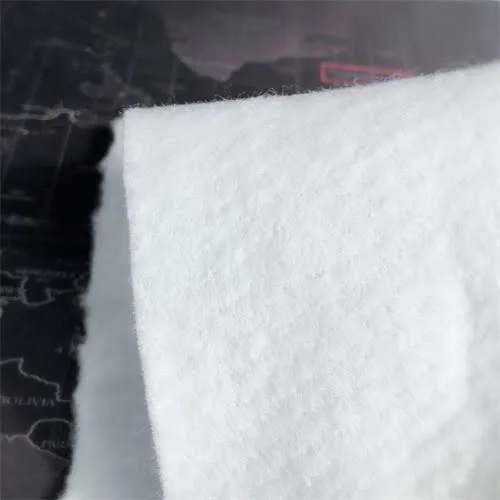

Continuous-filament structure
The continuous-filament needle-punched structure provides a permeable geotextile layer for filtration, separation and drainage applications.
Polyester Continuous-Filament Needle-Punched Nonwoven Geotextile
Continuous-filament polyester geotextile for filtration, separation, drainage and reinforcement in civil and environmental engineering applications.
Produced from continuous PET filaments through spinning, web formation and needle-punching processes, this nonwoven geotextile provides mechanical and hydraulic functions for infrastructure and ground-engineering projects.
Product Overview
0104
Polyester continuous-filament needle-punched nonwoven geotextile is a permeable geosynthetic manufactured from continuous PET filaments. Its three-dimensional fibrous structure is designed to provide filtration, separation, drainage and reinforcement functions within soil and aggregate systems.

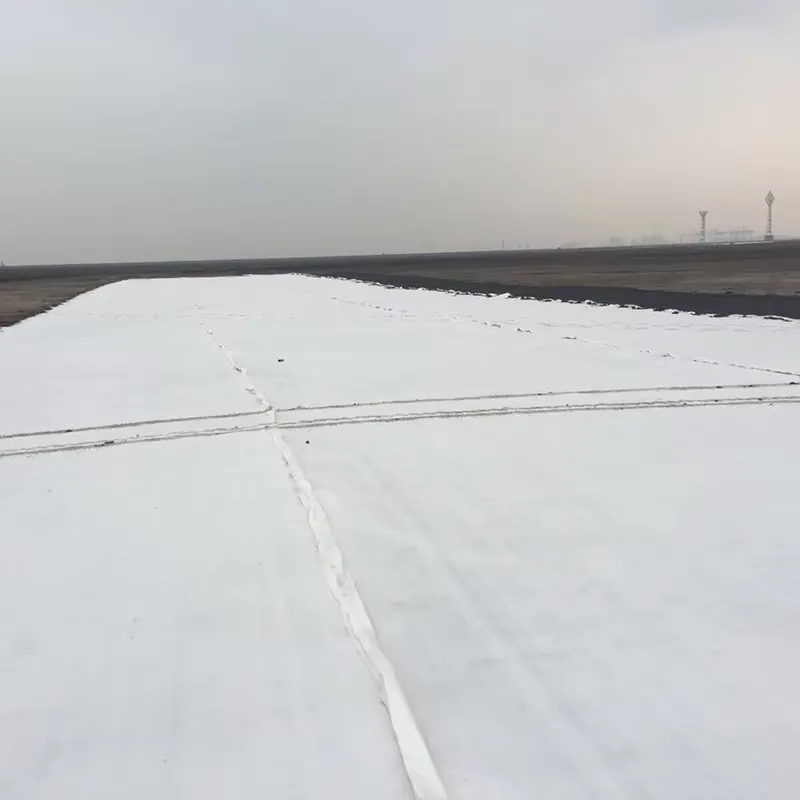

Typical applications include water-conservancy and hydropower projects, environmental engineering, highways, railways, dams, coastal works and mining-related civil works.
Product facts
- Material
- PET (polyester)
- Structure
- Continuous-filament needle-punched nonwoven
- Mass per unit area
- 100–1000 g/m²
- Width
- 4–7 m
- Primary functions
- Filtration, separation, drainage and reinforcement
- Applicable standards
- GB/T 17639-2008; JT/T 519-2004
Key Features
Mechanical performance
Breaking strength, CBR puncture strength and tearing-strength requirements are defined across the available strength grades.
Hydraulic performance
Equivalent opening size and vertical-permeability requirements support filtration and drainage functions.
Dimensional performance
Thickness and width-deviation requirements are specified according to the selected nominal breaking-strength grade.
Engineering versatility
Suitable for civil works including water conservancy, transportation infrastructure, dams, coastal works and selected mining-related applications.
Technical Specifications
Primary technical standard
GB/T 17639-2008
Additional standard
JT/T 519-2004
Technical data reference: customer-provided Polyester Continuous-Filament Geotextile technical performance table under GB/T 17639-2008.
| Property | Nominal breaking strength — kN/m | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 4.5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | |
| MD/CD breaking strength — kN/m | ≥ 4.5 | ≥ 7.5 | ≥ 10.0 | ≥ 15.0 | ≥ 20.0 | ≥ 25.0 | ≥ 30.0 | ≥ 40.0 | ≥ 50.0 |
| Elongation corresponding to nominal breaking strength, MD/CD — % | 40–80 | 40–80 | 40–80 | 40–80 | 40–80 | 40–80 | 40–80 | 40–80 | 40–80 |
| CBR puncture strength — kN | ≥ 0.8 | ≥ 1.6 | ≥ 1.9 | ≥ 2.9 | ≥ 3.9 | ≥ 5.3 | ≥ 6.4 | ≥ 7.9 | ≥ 8.5 |
| MD/CD tearing strength — kN | ≥ 0.14 | ≥ 0.21 | ≥ 0.28 | ≥ 0.42 | ≥ 0.56 | ≥ 0.70 | ≥ 0.82 | ≥ 1.10 | ≥ 1.25 |
| Property | Requirement |
|---|---|
| Equivalent opening size O90 (O95) — mm | 0.05–0.20 |
| Vertical permeability coefficient — cm/s | K × (10⁻¹ – 10⁻³) K = 1.0–9.9 |
| Property | Nominal breaking strength — kN/m | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 4.5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | |
| Mass per unit area deviation — % | −5 | −5 | −5 | −5 | −5 | −5 | −5 | −5 | −5 |
| Thickness — mm | ≥ 0.8 | ≥ 1.2 | ≥ 1.6 | ≥ 2.2 | ≥ 2.8 | ≥ 3.4 | ≥ 4.2 | ≥ 5.6 | ≥ 6.8 |
| Width deviation — % | −0.5 | −0.5 | −0.5 | −0.5 | −0.5 | −0.5 | −0.5 | −0.5 | −0.5 |
Technical Notes
- The technical specification grades in this table are based on nominal breaking strength and should not be confused with product mass per unit area.
- Product mass per unit area is available within the stated 100–1000 g/m² production range, while the technical table classifies performance by nominal breaking strength.
Discuss your product requirements
Send us your application, required specification, quantity and delivery destination for product review and quotation.
Useful information to provide
- Application
- Required mass per unit area
- Required breaking strength
- Required width
- Quantity
- Project location
- Delivery destination
- Applicable standard or project specification
