Integrated anchor structure
The sheet and reinforced anchor bases are formed as an integrated structure for mechanical anchoring to concrete.
HDPE Anchor Plate

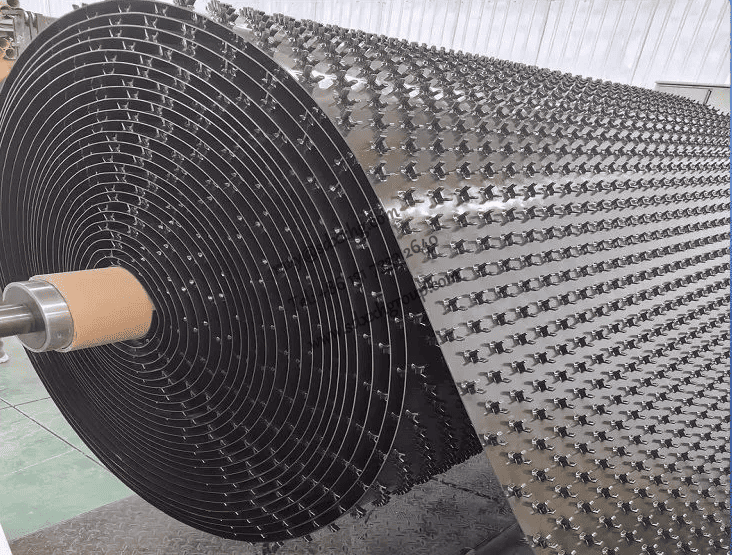

HDPE liner sheet with integrated anchor studs for protective lining and anchoring to concrete structures.

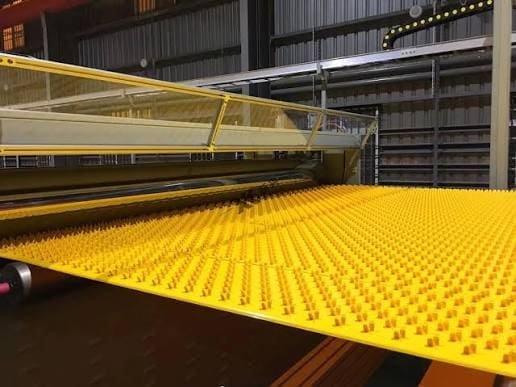

Integrally extruded with reinforced anchor bases, HDPE Anchor Plate mechanically interlocks with concrete to form a continuous protective lining for pipelines, tanks, tunnels and other concrete structures.
Product Overview
0104

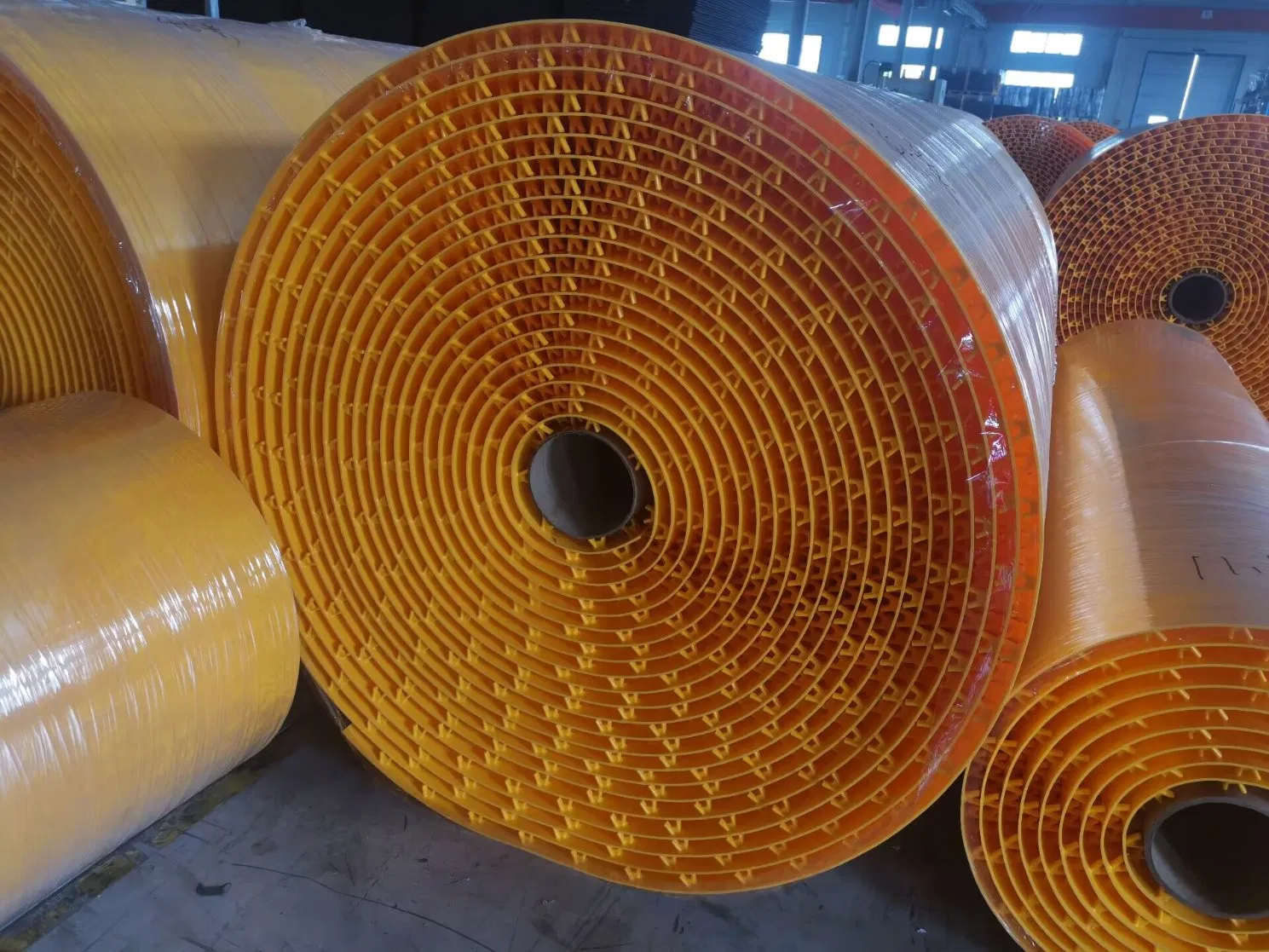

HDPE Anchor Plate is an integrally extruded polyethylene lining sheet with multiple reinforced anchor studs. During installation, the anchor structure mechanically interlocks with concrete to secure the sheet to the structural surface and form a continuous protective lining.
The product can be installed together with concrete casting or applied to existing structures as part of a renovation system. Typical uses include concrete pipelines, utility tunnels, tunnel linings, sewage and regulating tanks, hydraulic structures, underground concrete works, and selected geomembrane anchoring applications.
Product facts
- Material
- HDPE (high-density polyethylene)
- Structure
- Liner sheet with integrated anchor studs
- Manufacturing process
- Integral hot-melt extrusion
- Sheet thickness
- 1.5 / 2.0 / 3.0 mm
- Anchor stud height
- 13 / 16 / 19 mm
- Roll width
- 1.0–2.0 m
Customizable - Roll length
- Customizable
- Installation options
- Cast-in-place / Retrofit
- Primary functions
- Protective lining, anchoring, seepage control and corrosion protection
- Typical applications
- Concrete pipelines, utility tunnels, tanks, hydraulic structures and underground concrete works
Key Features
Mechanical interlocking
The anchor studs are designed to interlock with concrete and secure the lining to structural surfaces.
Protective lining
The HDPE sheet forms a continuous protective layer for concrete pipelines, tanks and underground structures.
Flexible installation
The product can be installed during concrete casting or incorporated into renovation works on existing concrete structures.
Multiple specifications
Available in three sheet thicknesses and three anchor-stud heights, with customizable roll dimensions for different project requirements.
Technical Specifications
Technical specification
Manufacturer product specification
Technical data source
Customer-provided HDPE Anchor Plate product specifications.
| Property | Specification |
|---|---|
| Material | HDPE (high-density polyethylene) |
| Structure | Integrated liner sheet with reinforced anchor studs |
| Manufacturing process | Integral hot-melt extrusion |
| Sheet thickness | 1.5 / 2.0 / 3.0 mm |
| Anchor stud height | 13 / 16 / 19 mm |
| Roll width | 1.0–2.0 m Customizable |
| Roll length | Customizable |
| Installation | Cast-in-place / Retrofit |
Technical Notes
- The sheet and anchor structure are integrally formed by hot-melt extrusion.
- Available sheet thicknesses are 1.5, 2.0 and 3.0 mm, with anchor-stud heights of 13, 16 and 19 mm.
- Standard roll width is within the 1.0–2.0 m range and may be customized according to project requirements. Roll length is customizable.
- The product can be incorporated during concrete casting or used in retrofit applications, depending on project design and installation conditions.
Discuss your product requirements
Send us your application, required specification, quantity and delivery destination for product review and quotation.
Useful information to provide
- Application
- Required sheet thickness
- Required anchor stud height
- Required roll width
- Required roll length
- Quantity
- Project location
- Delivery destination
- Project specification
